MAIN FEATURES

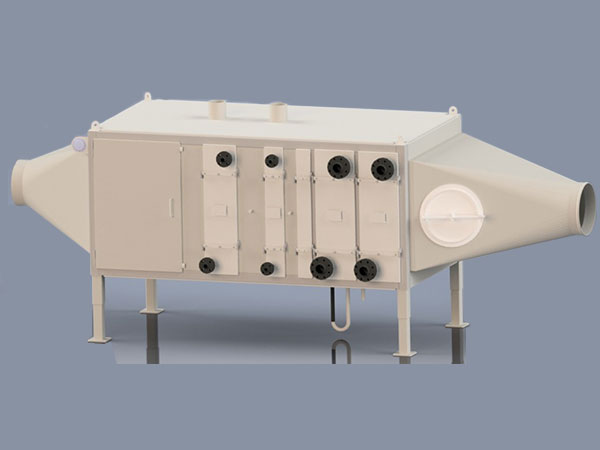

Finned tube heat exchanger type for dehumidification of air by means of condensation by using ice water or other cooling media flowing through the heat exchanger tubes, followed by a demister and re-heater (steam or hot water) to heat up the air above the dew point

Customized according to client specification and request

Insulated housing (fully welded, sanitary design) and extractable elements

MATERIALS AND CHARCTERISTIC VALUES

Housing: Stainless steel (AISI 304 and AISI 316) with mineral wool insulation

Finned tubes: Stainless steel (AISI 304 or AISI 316)

Fins: Aluminum or stainless steel

Demister: Stainless steel (AISI 304 and AISI 316)

Energy transferring media like water, glycol water, refrigerants or other medias possible

Air volume: up to 200’000 kg/h per device

Air outlet humidity: down to 5-6 g/kg
